SGM820PB8B3TFM
820A, 750V IGBT MODULE

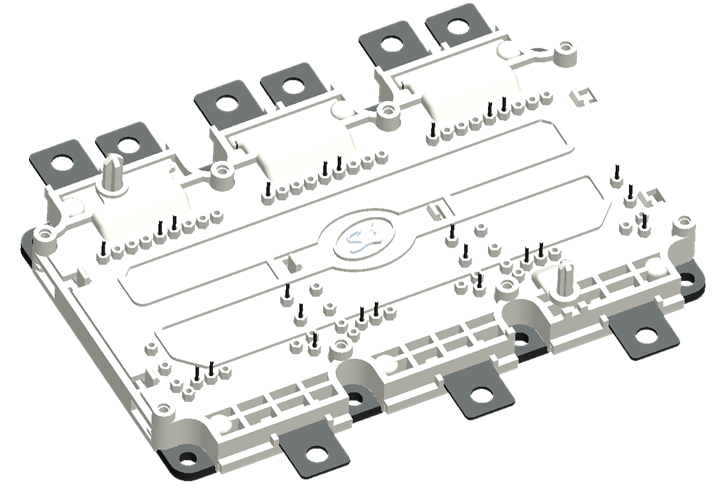

      SGM820PB8B3TFM is a six-cell topology module based on Silan self-developed high-density trench process IGBT chip technology. This module is suitable for hybrid and pure electric vehicle applications, it features high current density, high short-circuit capability and high blocking voltage level, it provides more reliable guarantee for inverter operation under harsh environmental conditions.

Main feature

  • Based on fine trench FS-V technology, blocking voltage up to 750V

  • Low VCE(sat) with positive temperature coefficient

  • Low switching loss

  • Low Qg and Cres

  • Using DBC with excellent thermal conductivity

  • Built-in NTC for each phase

  • Direct water-cooled substrate, low thermal resistance


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SGM820PB8B3TFM B3 SGM820PB8B3TFM Carton

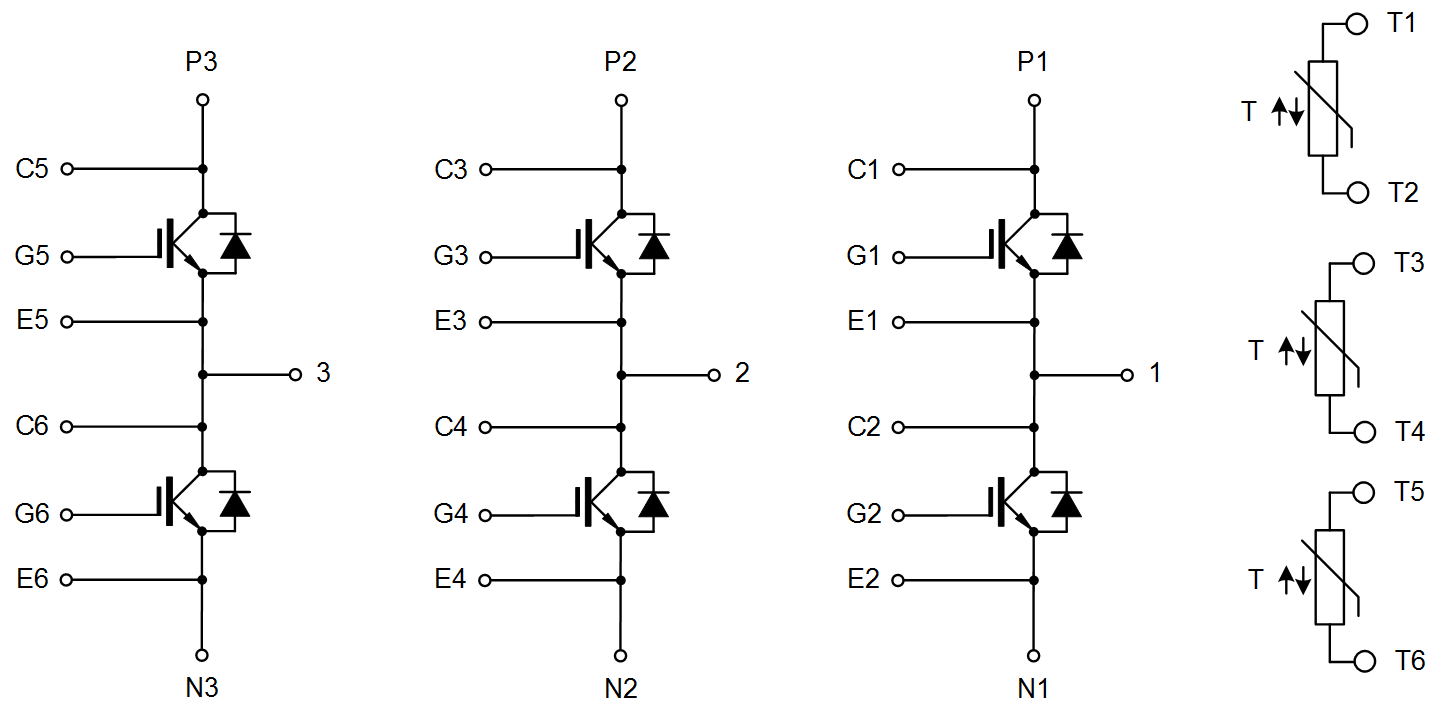

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SGM820PB8B3TFM 0 1970-01-01 SGM820PB8B3TFM Brief Datasheet
Packages
