SLP74XS0104
4-BIT AUTO DIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR DUAL SUPPLY AND OPEN DRAIN

     The SLP74XS0104 is a directionless voltage-level translator specifically designed for translating logic voltage levels. It features two 4-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A) and VCC(B)).The A port is designed to track VCC(A). VCC(A) accepts any supply voltage from 1.65V to 3.6V. VCC(A) must be less than or equal to VCC(B). The B port is designed to track VCC(B). VCC(B) accepts any supply voltage from 2.3V to 5.5V. This allows the device suitable for translating between any of the voltage nodes (1.8V, 2.5V, 3.3V and 5.0V).

     The SLP74XS0104 is designed so that the OE input circuit is supplied by VCCA. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


Main feature

  • No direction-control signal needed

  • Wide supply voltage range:

         VCC(A): 1.65V to 3.6V and VCC(B): 2.3V to 5.5V (VCC(A)≤VCC(B))

  • Max data rates:

        Push-pull: 24Mbps

  • Input accept voltages up to 5V

  • IOFF circuitry provides partial Power-down mode operation

  • ESD protection:

       HBM exceeds 2kV for A port

       HBM exceeds 8kV for B port

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74XS0104JY TSSOP-14-225-0.65 XS0104 Halogen free Tube
SLP74XS0104JYTR TSSOP-14-225-0.65 XS0104 Halogen free Tape & Reel

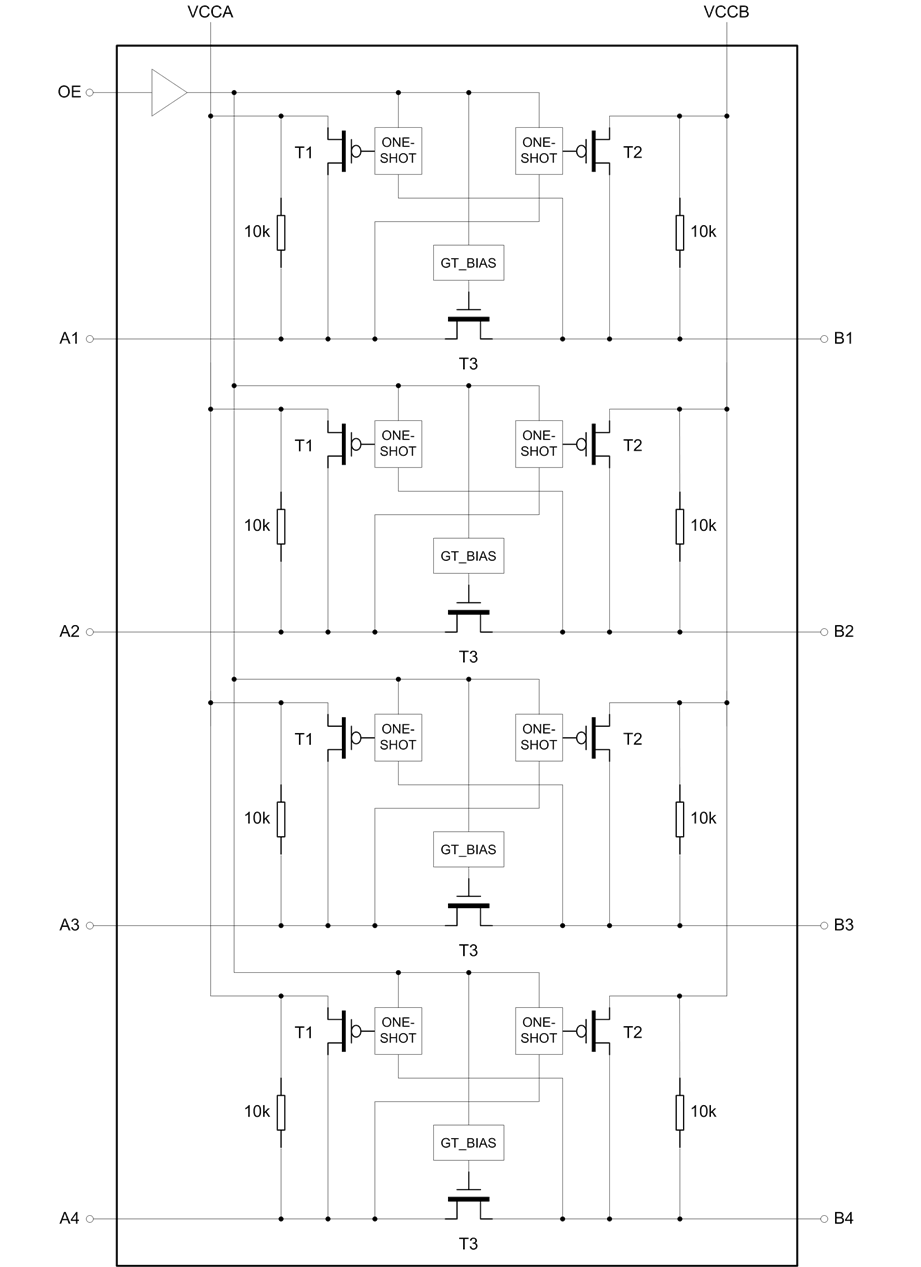

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74XS0104 0 1970-01-01 SLP74XS0104 Brief Datasheet
