SDH21697
SINGLE CHANNEL LOW-SIDE GATE DRIVER

    The SDH21697 is high speed N-type power MOSFET and IGBT gate driver. It provides transient sink and source 2.0A/-2.0A peak current.

Main feature

  • 3.3V/5V/15V input logic compatible

  • Outputs in phase with inputs

  • Output peak current:+2.0A/-2.0A

  • Undervoltage protection function


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDH21697 SOT-23-5L 1697 Halogen free Tube
SDH21697TR SOT-23-5L 1697 Halogen free Tape&Reel

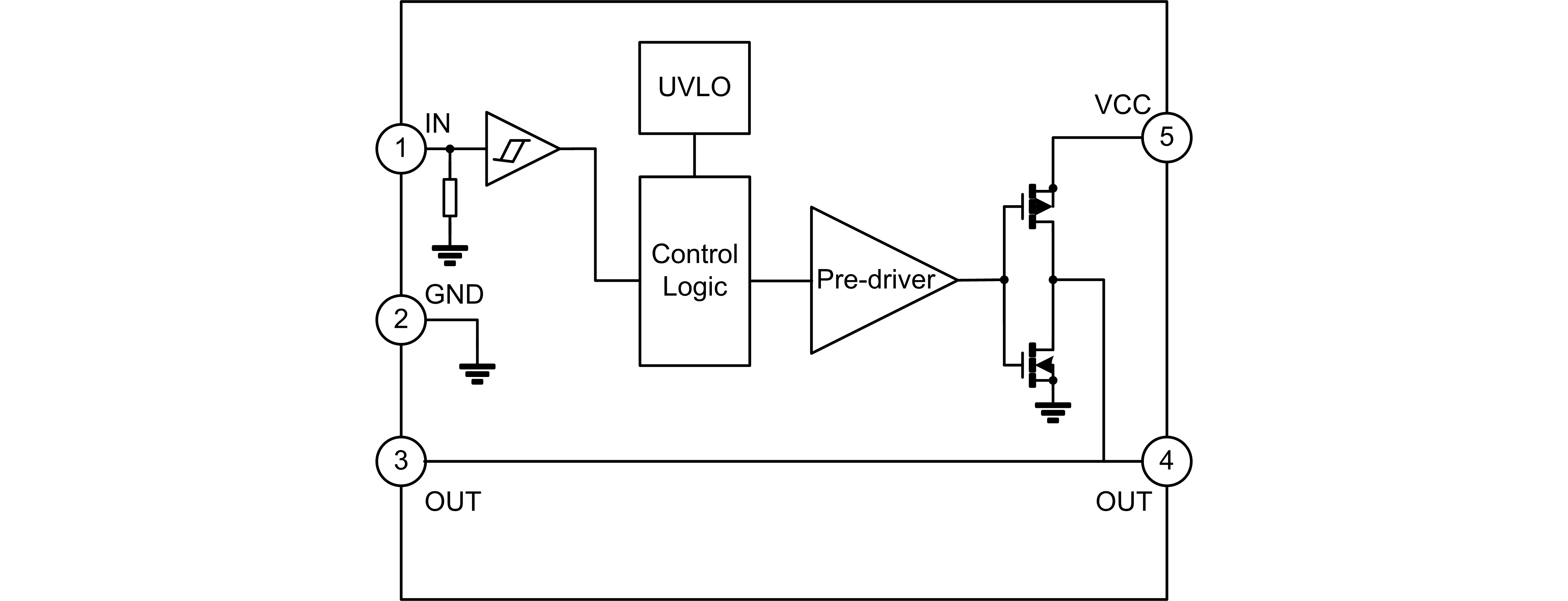

Block Diagram

SDH21697 英文.png

Documents
title Types of Size (KB) date Download the latest English version
SDH21697 0 1970-01-01 SDH21697 Brief Datasheet
Packages
