SA339
QUADRUPLE DIFFERENTIAL COMPARATORS

The SA339 devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.


Main feature

Wide Single?Supply Range: 2V~36V

Low Supply-Current Drain, 0.8mA Typ

Common-mode input voltage range includes ground

Low Input Bias and Offset Parameters

Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage 36V

Open-Loop Differential Voltage Amplification: 100V/mV

Internal Frequency Compensation


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SA339SB SOP-14-225-1.27 SA339SB Halogen free Tube
SA339SBTR SOP-14-225-1.27 SA339SB Halogen free Tape&Reel
SA339JY TSSOP-14-225-0.65 SA339 Halogen free Tube
SA339JYTR TSSOP-14-225-0.65 SA339 Halogen free Tape & Reel

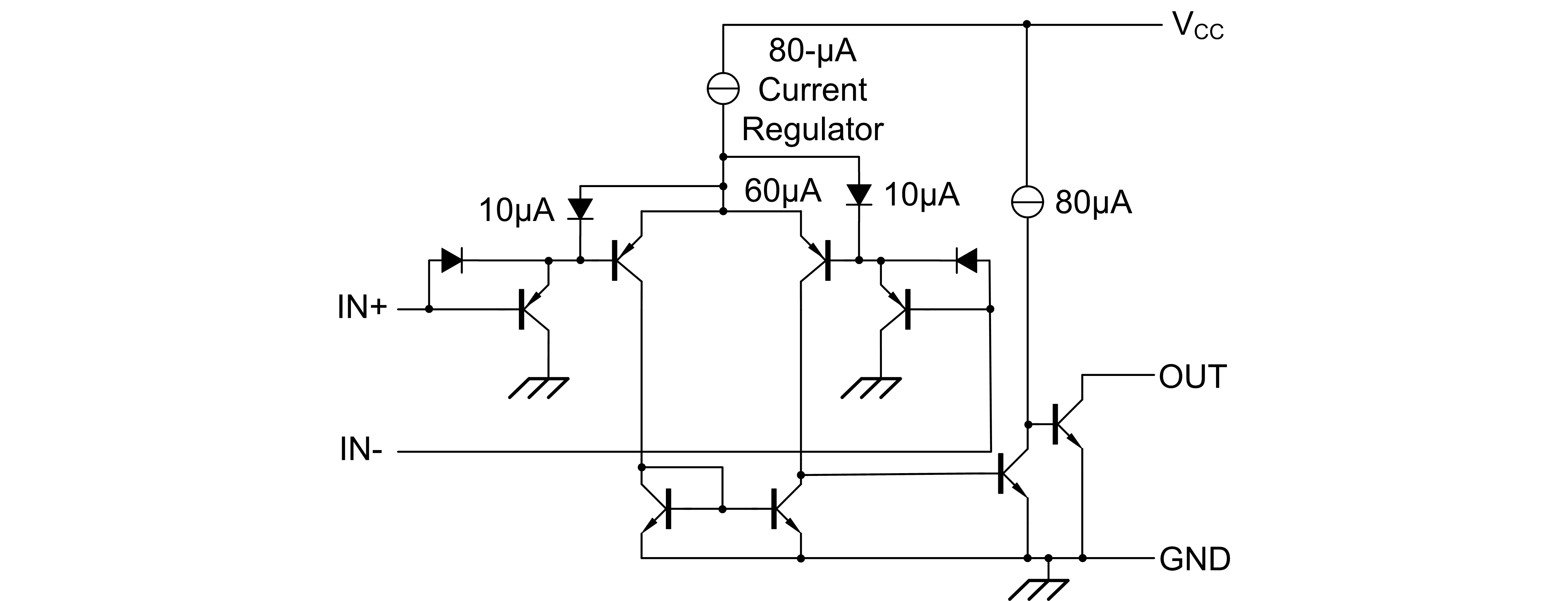

Block Diagram

SA339 英文.png

Documents
title Types of Size (KB) date Download the latest English version
SA339 0 1970-01-01 SA339 Datasheet
