SLP74AHC1G86
2-INPUT EXCLUSUVE-OR GATE

    The SLP74AHC1G86 is a Si-gate CMOS devices.

    The SLP74AHC1G86 provides a two-input Exclusive-OR function.


Main feature

  • Balanced propagation delays

  • CMOS input levels

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74AHC1G86KMTR SOT-353-5L SJ Halogen free Tape&Reel
SLP74AHC1G86KBTR SOT-23-5L A186 Halogen free Tape & Reel

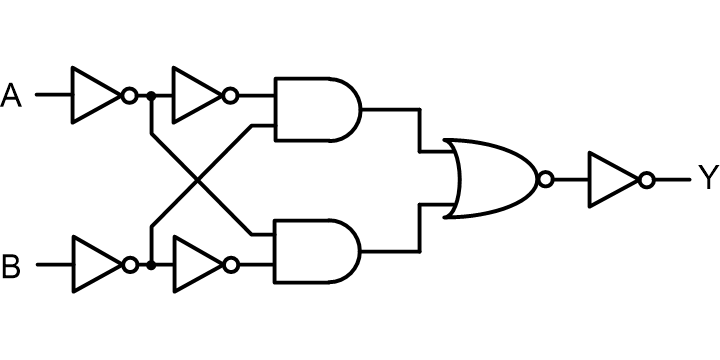

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74AHC1G86 0 1970-01-01 SLP74AHC1G86 Brief Datasheet
