SLP74HC595
8-BIT SHIFT REGISTERS WITH 3-STATE OUTPUTS

    The SLP74HC595 contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3- state outputs.

    Separate clocks are provided for both the shift and storage registers. Data is shifted on the positive-going transitions of the shift register clock input (SHCLK). The data in each register is transferred to the storage register on a positive-going transition of the storage register clock input (STCLK). If both clocks are connected together, the shift register will always be one clock pulse ahead of the storage register.

   The shift register has a serial input (DS) and a serial standard output (Q7S) for cascading. It is also provided with asynchronous reset (active LOW) for all 8 shift register stages. The storage register has 8 parallel 3-state bus driver outputs. Data in the storage register appears at the output whenever the output enable ( OE(——) input is LOW. When the output-enable ( OE——) input is high, all outputs except Q7S are in the high-impedance state.


Main feature

  • Operating range: 2V to 6.0V

  • 8-bit serial-in, parallel-out shift

  • Storage register with 3-state outputs

  • CMOS input levels

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

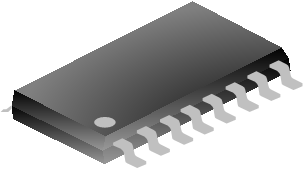

SLP74HC595SC SOP-16-225-1.27 74HC595 Halogen free Tube
SLP74HC595SCTR SOP-16-225-1.27 74HC595 Halogen free Tape & Reel

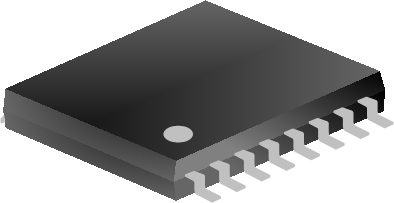

SLP74HC595JSTR TSSOP-16-225-0.65 74HC595 Halogen free Tape & Reel

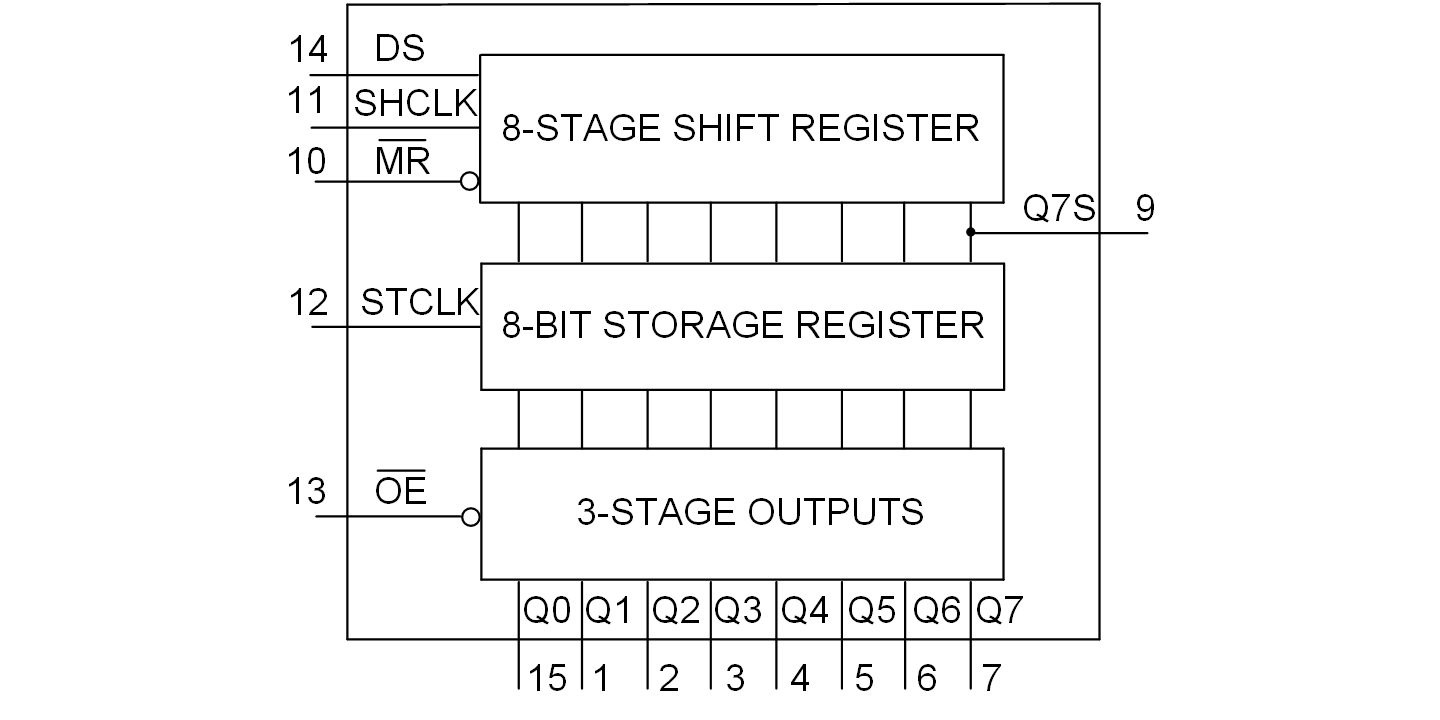

Block Diagram

SLP74HC595英文 （1440&720）.png

Documents
title Types of Size (KB) date Download the latest English version
SLP74HC595 0 1970-01-01 SLP74HC595 Brief Datasheet
