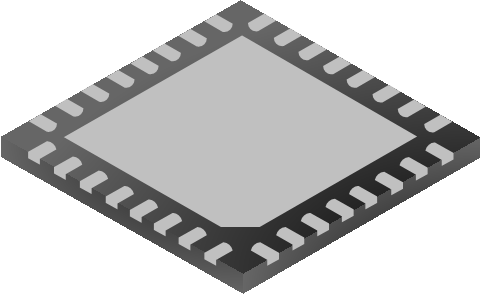

SD8602Q
USB POWER DELIVERY (PD) CONTROLLER FOR TYPE-C ADAPTER OR CHARGER

The SD8602Q is an USB PD controller in the secondary side designed for USB type-C adapter or charger. It is suitable for protocols of PD3.0, PPS, Type C, QC3.0, FCP, SCP, SFCP and BC1.2 by an integrated MCU.

SD8602Q can operate in the condition of wide voltage range (3V~24V). Precise Constant voltage (CV) and Constant Current (CC) control can be provided.

SD8602Q features built-in over voltage protection (OVP), over temperature protection (OTP), etc.


Main feature

  • Protocol support PD3.0, PPS, Type C, QC3.0, FCP, SCP, SFCP, and BC1.2

  • Operation voltage range: 3V~24V

  • Idle Mode in standby for power saving

  • Embedded MCU

  • Constant voltage and current control

  • External load switch control

  • Over voltage protection

  • Over temperature protection

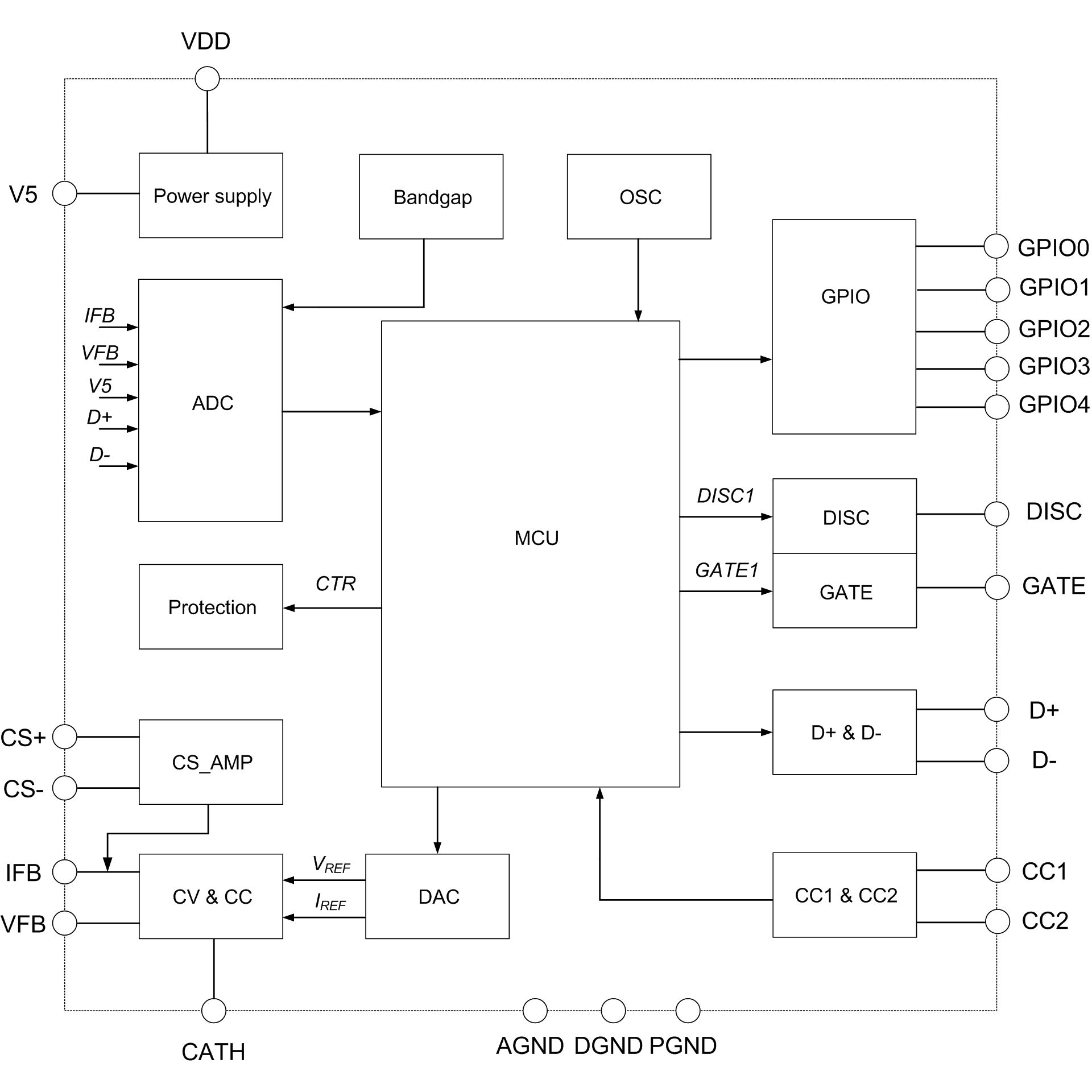

Block Diagram
